2.0mm Right Angle Side Insert pcb female connector 20mΩ Max Current Rating 2.0AMP

Name: 20mm Right Angle Side Insert pcb female connector 20mΩ Max Current Rating 20AMP
Brand: WCON
Price: 1 USD

Brand Name : WCON

Model Number : 2249-2XXRG0CUNT1

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000PCS

Price : negotiaiton

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15~25Day

Packaging Details : Tube

Current Rating : 2.0AMP

Contact Resistance : 20mΩ Max

Withstand Voltage : 500V AC/DC

Insulation Resistance : 1000mΩ Min

Product height : 4.9mm

Contact Now

2.0mm 90° DIP Side Insert H=4.9 Female Header Connector 02-40P connector

Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	phosphor Bronze
Contact Plating	AU over Ni
Insulator Material	PA9T+30％GF UL94V-0

Item name: female connector:

1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.

3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.

2.0mm Right Angle Side Insert pcb female connector 20mΩ Max Current Rating 2.0AMP

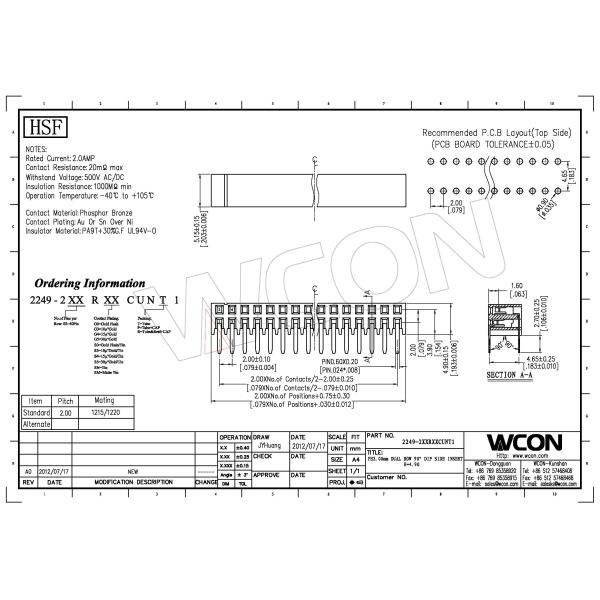

2249-2XXRXXCUNT1.pdf
